The technology of
RABE plows have been proven and reliable for decades.

  • Home
  • Technology Albatros/ Super Abatros

The Albatros tower constructions

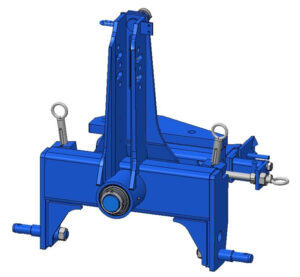

Albatros revolving tower

Torsional stiffness with lightweight tower construction​

  • Low total weight​
  • Low lifting forces required​
  • High durability

Lower link pivot for the use of balls with catch pockets Cat. II, III N and III and top link coupling in slotted hole and fixed​

  • Low excavation heights required​
  • Optimum adjustment of the tension point geometry​
  • Less slippage​
  • Low fuel consumption​

Optional support spigot for Cat. III available

  • Low maintenance costs

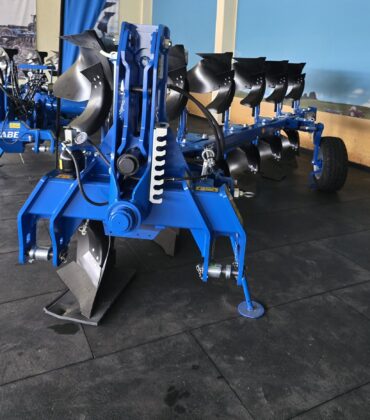

Super Albatros fixed turret

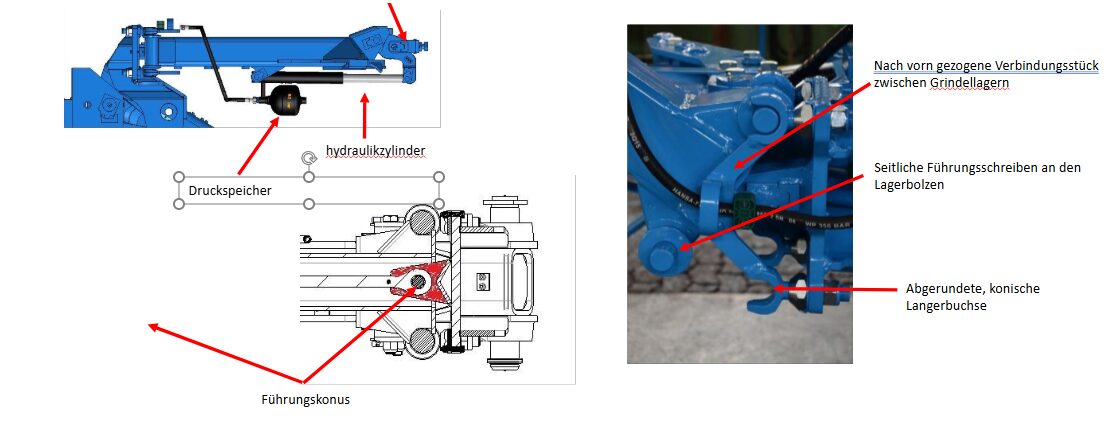

Hydro-pneumatic damping of the mounting tower​

  • Protects tractor and plow​
  • Prevents increased wear​
  • Supports the vibration damping of the tractor EHR on the road​
  • Promotes smooth road transport when the plow is raised​
  • Reduces maintenance costs​

System fully integrated into the add-on tower​

  • No increased lifting forces​
  • No shifting of the center of gravity to the rear​

Easy adjustment from the cab (on the tractor side)

  • High spring comfort​
  • Faster turning possible​
  • Increases the area output

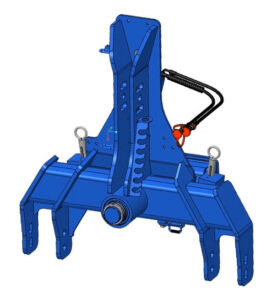

Super Albatros sprung rotating tower

Hydro-pneumatic damping of the mounting tower​

  • Protects tractor and plow​
  • Prevents increased wear​
  • Supports the vibration damping of the tractor EHR on the road​
  • Promotes smooth road transport when the plow is raised​
  • Reduces maintenance costs​

System fully integrated into the add-on tower​

  • No increased lifting forces​
  • No shifting of the center of gravity to the rear​

Easy adjustment from the cab (on the tractor side)

  • High spring comfort​
  • Faster turning possible​
  • Increases the area output

Precise adjustment center

Perfect plow pattern

Robust frame

Durable & torsion-resistant

Stone protection

Shear bolt or Hydro-Avant Non-Stop

Variant technology

Stepless cutting width adjustment

Adjustment center

Precise adjustment for a perfect plow pattern.

  • Compact design​
  • Small center of gravity distance​
  • Lower lifting forces required​
  • Easy excavation​

All settings accessible from the left-hand side​

  • Higher area output with optimum plowing pattern​

First body cutting width adjustment via slide (parallel displacement)​

  • Perfect plow pattern​
  • Less slippage​
  • Lower fuel consumption

Frame

  • Profile frame with 8 mm (Albatros 110) and 10 mm (Albatros 120 and S- Albatros) Wall thickness
  • Heat-treated and aligned frame
  • 110, 120, 140 and 160mm square tube
  • Long service life
  • Safe use under all conditions
  • No material fatigue

Stone protection

Grindel fastening & shear bolt

The different blade thicknesses, which vary depending on the plough type, enable optimum adaptation to different operating conditions. The stable design is suitable for all conditions and bodies and ensures reliable use even in heavy and hard soils. The single-sided headstock attachment in combination with the sturdy main bolt and the face-milled flange surfaces ensure a particularly stable fit. The shear bolt with defined predetermined breaking point ensures controlled shearing in the event of overload and thus increases operational safety. Overall, the system guarantees optimum shearing with high operational reliability and a long service life.
